UltraWave Max UF20J Ultrafiltration System

Advanced Whole-Property Water Filtration

The UltraWave Max UF20J is a high-performance point-of-entry water filtration system designed for residential and light commercial applications where cleaner, clearer and more consistently filtered water is required throughout a property.

Unlike a small point-of-use filter that treats water at a single tap, the UltraWave Max is installed on the main incoming water supply. This allows water to be filtered before it is distributed to bathrooms, kitchens, appliances and other outlets throughout the building.

Manufactured by Global Water Solutions, the UltraWave Max combines two stages of filtration with automatic membrane flushing, pressure monitoring and water-hammer protection in one compact system. It is designed to provide high-flow filtration while keeping routine maintenance relatively straightforward.

The system is particularly well suited to homes, offices, guest houses, lodges and other light commercial properties where sediment, fine suspended particles, turbidity and microbiological contamination may be concerns.

For applications where water quality is uncertain, FlowSpec can also help determine whether filtration alone is suitable or whether the UltraWave Max should form part of a broader water treatment solution.

Dual-Stage Water Filtration

The UltraWave Max uses two dedicated filtration stages.

Water first passes through a 5-micron grooved polypropylene sediment filter before reaching the system’s 0.1-micron membrane filtration stage.

This staged approach is important because larger particles are removed before reaching the membrane. Reducing the sediment load helps protect the finer filtration stage, maintain flow and extend membrane service life.

Stage 1: 5-Micron Sediment Filtration

The first stage uses a grooved polypropylene sediment cartridge installed inside a clear 20-inch jumbo filter housing.

This filter is designed to capture suspended particulate matter such as sand, silt, rust, pipe scale and other sediment commonly found in municipal, borehole, storage-tank and water-distribution systems.

The grooved cartridge design provides a large filtration surface area and good contaminant-holding capacity, allowing the prefilter to protect the more specialised membrane downstream.

The transparent housing also provides a practical advantage. Instead of opening the housing simply to inspect the cartridge, the condition of the sediment filter can be visually monitored during normal operation.

A built-in pressure gauge provides an additional indication of filter condition. According to the manufacturer, a pressure reduction of approximately 0.7 bar or 10 psi can indicate that the sediment cartridge requires replacement.

This provides a much more practical maintenance indicator than relying solely on a fixed replacement interval.

Stage 2: 0.1-Micron Membrane Filtration

After the sediment stage, water passes through the UltraWave Max’s 0.1-micron membrane.

This stage provides considerably finer filtration than the initial 5-micron sediment cartridge and is designed to capture fine suspended particles, colloidal material and bacteria.

The membrane works primarily as a physical barrier. Contaminants larger than the effective filtration threshold are retained while water and much smaller dissolved substances are able to pass through.

This makes the UltraWave Max particularly useful where the objective is to reduce particulate and microbiological contamination without using reverse osmosis for the entire property’s water supply.

The combination of 5-micron prefiltration followed by 0.1-micron membrane filtration provides progressive treatment while helping protect the membrane from unnecessary sediment loading.

Whole-House and Point-of-Entry Filtration

The UltraWave Max is designed as a point-of-entry, or POE, filtration system.

A POE system treats water close to where the main supply enters a property rather than filtering only one individual drinking-water outlet.

When correctly sized and installed, this means filtered water can be supplied to multiple outlets throughout the property.

It can therefore be used for homes, residential estates, guest houses, offices, lodges, clinics, small businesses, hospitality applications and other light commercial installations.

The UltraWave Max may also be considered as part of a treatment system for water supplied from storage tanks or suitable boreholes. In these cases, the source-water quality should be assessed first because borehole and stored water can contain contaminants that physical filtration alone will not address.

High Flow Rates for Whole-Property Use

One of the UltraWave Max’s significant advantages is its ability to provide substantially higher flow than a conventional under-counter filtration system.

Manufacturer specifications indicate flow rates of up to 33 litres per minute at 1 bar, 50 litres per minute at 3 bar and 58 litres per minute at 5 bar.

This makes the system suitable for installations where several outlets may require water at the same time.

Actual system performance will depend on factors including inlet pressure, source-water quality, sediment loading, pipe sizing, cartridge condition and the overall plumbing installation.

Correct sizing remains important, particularly for larger homes and commercial properties with high simultaneous water demand.

Automatic Membrane Flushing

A major feature of the UltraWave Max is its built-in automatic membrane flushing system.

During normal filtration, particles retained by the membrane can gradually accumulate on its surface. If this build-up is not managed, membrane fouling can reduce flow and filtration efficiency.

The UltraWave Max uses an adjustable timer-controlled flushing system that periodically opens the drain valve and flushes accumulated material from the membrane.

Regular automatic flushing helps maintain membrane performance, reduce fouling and extend membrane service life while reducing the need for frequent manual intervention.

A heavy-duty 12 V brass solenoid drain valve controls the flushing process.

For a point-of-entry system that may process thousands of litres of water, automatic membrane maintenance is a significant advantage over simpler filtration systems that rely entirely on manual servicing.

Built-In Water-Hammer Protection

Rapidly closing taps, solenoid valves, pumps and other plumbing components can create sudden pressure surges known as water hammer.

Repeated pressure shocks can place unnecessary stress on filters, housings, valves and pipework.

The UltraWave Max includes a built-in water-hammer arrestor designed to help protect the filtration system from these sudden pressure surges.

This is particularly useful in permanent whole-property installations where filtration equipment becomes part of the property’s main water infrastructure.

Durable, Serviceable Construction

The UltraWave Max is mounted on a robust stainless-steel support structure with a wall-mounting option, creating a compact and organised filtration installation.

The complete system measures approximately 410 mm × 200 mm × 780 mm and has a manufacturer-specified net weight of approximately 19 kg.

The system has also been designed with maintenance in mind. Replaceable filter components, pressure monitoring, a transparent sediment housing and automatic flushing allow routine maintenance to be carried out without the complexity associated with larger industrial membrane plants.

Replacement sediment filters and UF membrane components are available separately, helping extend the service life of the complete system rather than requiring replacement of the entire unit.

UltraWave Max Technical Specifications

• Model: UF20J
• Prefilter: 5-micron grooved polypropylene sediment cartridge
• Membrane: 0.1-micron filtration membrane
• Operating pressure: 1 to 5 bar
• Operating temperature: 4°C to 40°C
• Maximum flow: up to 58 litres per minute at 5 bar
• Flow at 3 bar: up to 50 litres per minute
• Flow at 1 bar: up to 33 litres per minute
• Maximum feed-water turbidity: less than 50 NTU
• Recommended operating pH: 5 to 8
• Maximum chlorine concentration: 50 ppm
• Electrical supply: 110 to 240 V, 50/60 Hz
• Dimensions: approximately 410 × 200 × 780 mm
• Net weight: approximately 19 kg
• Automatic timer-controlled membrane flushing
• Built-in pressure gauge
• Built-in water-hammer arrestor
• Stainless-steel support structure

What Can the UltraWave Max Help Remove?

The UltraWave Max is primarily designed for physical water filtration.

The sediment and membrane stages can help reduce sand, silt, rust, pipe debris, suspended sediment, fine particles, colloidal material and bacterial contamination within the performance capabilities of the membrane.

Reducing these contaminants can improve water clarity while helping protect downstream plumbing, valves, appliances and additional treatment equipment.

The system can also provide useful prefiltration before technologies such as UV disinfection, activated carbon filtration or other water treatment equipment.

What Does the UltraWave Max Not Remove?

It is equally important to understand the limits of ultrafiltration.

The UltraWave Max is not a reverse osmosis system and does not automatically remove substances simply because they are present in water.

Many dissolved minerals, salts and other small molecules can pass through this type of membrane.

It should therefore not automatically be specified for treating high TDS, salinity, hard water, excessive calcium and magnesium, fluoride, nitrates or dissolved chemical contaminants.

Where dissolved salts or other dissolved contaminants are the problem, reverse osmosis or specialised treatment may be more appropriate.

Where hardness and scale are the primary concern, water softening or conditioning may be required.

Where microbiological water quality is critical, additional disinfection such as UV treatment may also form part of the complete system.

The correct combination depends on what is actually present in the source water.

Start With the Water, Not the Equipment

There is no single filtration system that is ideal for every water source.

Municipal water, borehole water, rainwater, tank water and surface water can contain completely different contaminants and therefore require different treatment approaches.

For uncertain or untreated supplies, a water analysis is recommended before selecting equipment.

Testing can identify parameters such as turbidity, hardness, pH, iron, manganese, dissolved salts, nitrates and microbiological contamination. FlowSpec can then use this information together with the required water demand and application to recommend an appropriate treatment solution.

This prevents unnecessary equipment from being installed while helping ensure that important contaminants are not overlooked.

Is the UltraWave Max Right for Your Property?

The UltraWave Max offers an excellent combination of high-flow sediment filtration, fine membrane filtration and automated maintenance in a compact point-of-entry system.

Its combination of a 5-micron sediment prefilter, 0.1-micron membrane, automatic flushing, pressure monitoring and water-hammer protection makes it a practical option for residential and light commercial properties that need reliable whole-property filtration.

However, the best system always starts with understanding your water source and the problem you are trying to solve.

FlowSpec can assist with product selection, filtration design and the integration of the UltraWave Max with additional treatment technologies where required.

Tell us where your water comes from, what water-quality problems you are experiencing and approximately how much water the property uses.

We will help you determine whether the UltraWave Max UF20J is suitable on its own or should form part of a more comprehensive water treatment system.

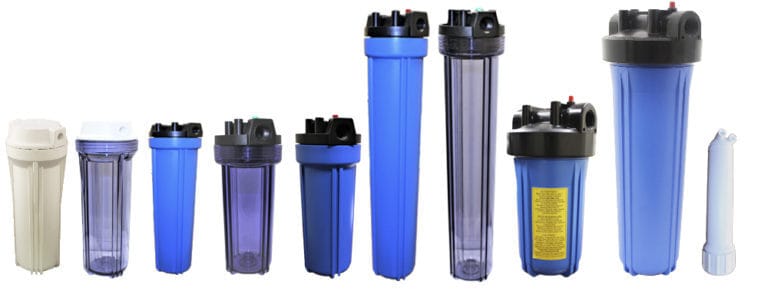

Reliable Filter Housings for Complete Water Filtration Systems

FlowSpec supplies a range of high-quality filter housings designed to provide a reliable foundation for residential, commercial and industrial water-filtration systems.

A filter housing performs an essential role in any cartridge-based filtration system. It securely contains the filter cartridge, withstands the operating pressure and directs incoming water through the filtration media before it continues through the water system.

Our filter housings are available in different sizes and configurations, allowing systems to be designed around the required flow rate, filtration capacity, operating pressure and available installation space.

Standard and Jumbo Filter Housings

FlowSpec supplies both standard and jumbo filter housings in common 10-inch and 20-inch formats.

Standard housings are ideal for smaller residential, point-of-use and lower-flow filtration applications.

Jumbo housings accommodate larger-diameter cartridges, providing greater filtration surface area and contaminant-holding capacity. This makes them particularly useful for whole-house, commercial and higher-flow water-treatment installations.

The correct housing size should be selected according to factors including:

• Required water flow
• Cartridge size
• Water pressure
• Expected contaminant load
• Plumbing connection size
• Available installation space
• Required service intervals

Clear and Opaque Housings

Depending on the installation, filter housings are available with either clear or opaque sumps.

A clear filter housing allows the cartridge and sediment build-up to be visually inspected without opening the housing.

This can be particularly useful when sediment filtration is being used because the amount of trapped material is easier to monitor.

An opaque housing provides a robust alternative where visual inspection is not required or where the housing may be exposed to light.

The best option depends on the installation environment and type of filtration media being used.

Suitable for Different Filter Cartridges

FlowSpec filter housings can accommodate compatible cartridges for various filtration requirements.

These may include:

• Sediment filters
• Activated carbon filters
• Carbon block cartridges
• Granular media cartridges
• Speciality filtration cartridges

Because the cartridge determines the treatment function, the same basic housing can often be used for different purposes by changing the cartridge installed inside.

This creates a flexible system that can be adapted as water conditions or treatment requirements change.

Single and Multi-Stage Filtration

Filter housings can be installed individually or combined into multi-stage filtration systems.

A common configuration may include:

Stage 1: Sediment filtration to reduce sand, silt and rust.

Stage 2: Activated carbon filtration to reduce chlorine, taste and odour.

Stage 3: A specialist cartridge selected for a particular water-quality requirement.

Multi-stage filtration allows several water-quality issues to be addressed within one treatment system.

Filter housings are also frequently used for prefiltration before equipment such as reverse osmosis systems or UV disinfection units.

Applications

FlowSpec filter housings are suitable for a wide range of applications, including:

• Residential water filtration
• Whole-house filtration
• Borehole water systems
• Municipal water filtration
• Storage tank systems
• Reverse osmosis prefiltration
• Commercial water treatment
• Hospitality
• Agriculture
• Industrial filtration

Correct sizing remains important. An undersized housing or cartridge can restrict flow and require more frequent servicing, while a correctly sized system can provide better filtration performance and longer service intervals.

FlowSpec can help you select the appropriate housing size, cartridge type and system configuration according to your water source, flow demand and treatment requirements.

Contact FlowSpec for assistance designing a reliable filtration system for your home, business or project.

High-Performance Water Filters for Reliable Water Treatment

FlowSpec supplies a comprehensive range of water filter cartridges for residential, commercial and industrial water-treatment applications.

Different water-quality problems require different filtration technologies, which is why our range includes sediment filters, activated carbon cartridges and specialist filtration media in a variety of sizes and configurations.

Whether you need to reduce sediment, improve taste and odour, protect downstream equipment or build a complete multi-stage filtration system, FlowSpec can help you select the correct filter for the application.

Sediment Filtration

Sediment is one of the most common water-quality problems and may include sand, silt, rust, pipe scale and other suspended particles.

Our grooved polypropylene sediment filters are designed to capture these particles before they reach downstream plumbing, appliances or additional water-treatment equipment.

The grooved design increases the effective filtration surface area and improves dirt-holding capacity compared with conventional smooth sediment cartridges.

Sediment cartridges are available in various micron ratings, including options such as:

• 1 micron
• 5 micron
• 10 micron
• 20 micron

Choosing the correct micron rating depends on the source water, level of contamination and required flow rate.

Sediment filtration is often used as the first stage in a multi-stage system because removing suspended solids can help protect carbon filters, reverse osmosis membranes, valves and other water-treatment equipment.

Activated Carbon Filters

Where chlorine, unpleasant taste or odour is the primary concern, FlowSpec offers activated carbon filtration options.

Carbon filtration works through adsorption, allowing contaminants to bind to the highly porous surface of the activated carbon.

Depending on the cartridge selected, activated carbon can help reduce:

• Chlorine
• Unpleasant tastes
• Odours
• Selected organic compounds
• Certain chemical contaminants

Carbon filtration is commonly used for municipal water, drinking-water systems and as part of multi-stage treatment installations.

Flexible Filtration Options

Our filter range is available in standard and jumbo formats, allowing systems to be designed around the required water flow and contaminant load.

Smaller cartridges are well suited to point-of-use and lower-flow applications, while jumbo filters offer greater surface area and capacity for whole-property and higher-flow installations.

Filters can be installed individually or combined into multi-stage systems.

A typical system may use:

Stage 1: Sediment filtration
Stage 2: Activated carbon filtration
Stage 3: Specialist treatment where required

Filters may also be used as prefiltration before technologies such as reverse osmosis, UV disinfection or other water-treatment systems.

Selecting the Correct Water Filter

No single cartridge is suitable for every water-quality problem.

Sediment filters remove suspended particles but do not remove dissolved salts or hardness. Carbon filters can improve taste and odour but are not a substitute for reverse osmosis, softening or disinfection where those treatments are required.

For borehole, rainwater, tank or other uncertain water sources, water testing may be recommended before selecting equipment.

FlowSpec can assess your water source, required flow rate and treatment objectives to help specify the correct combination of filters and housings.

Speak to FlowSpec about the right filtration solution for your home, business or water-treatment project.
